Complete Guide to Parametric Energy Modeling: From Concept to Optimization

What Is Parametric Energy Modeling and Why It Matters?

Parametric energy modeling refers to a dynamic approach to building energy modeling where designers define variables (parameters) such as orientation, glazing ratio, and massing, then automatically generate variations to assess energy performance. This allows performance-based design decisions early in the design process, informed by data rather than guesswork.

By leveraging computational design workflow principles and automated analysis, teams can evaluate hundreds of design alternatives efficiently. This shifts projects from static energy simulations to adaptive models that respond to changing constraints and objectives. Sustainable projects using these methods often outperform traditional approaches in both design quality and energy savings.

Understanding Early Conceptual Energy Modeling

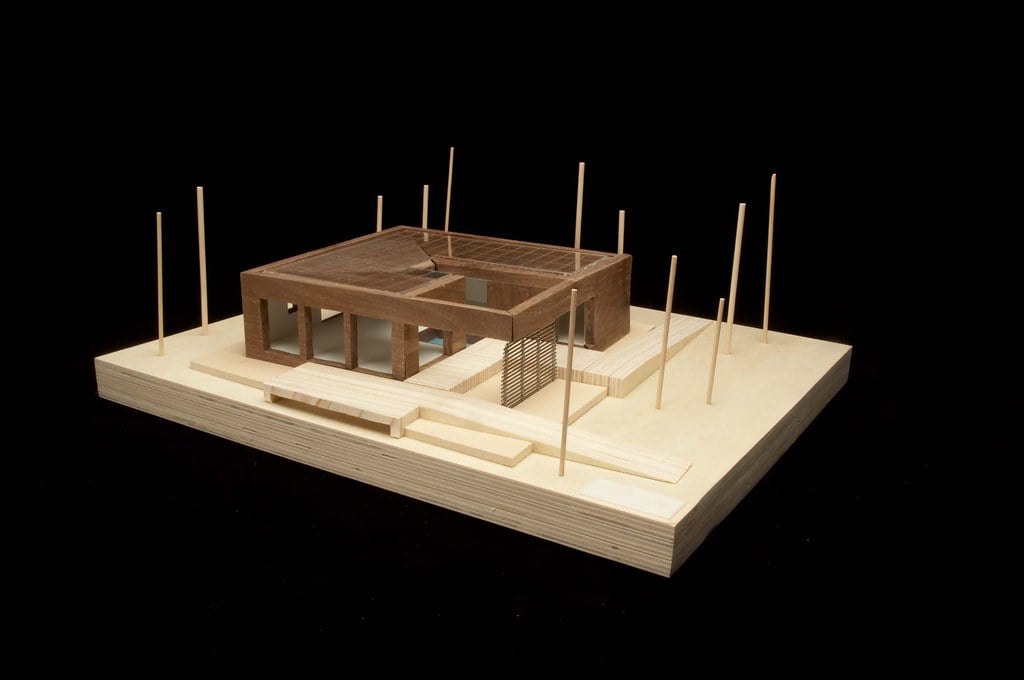

At early design stages, models are simplified. This enables quick evaluation without full detail. Using conceptual massing, approximate materials, and general orientation, teams can assess baseline energy demand. This stage benefits from rapid iteration and integration with design workflows like computational design workflow strategies.

Building the First Model in Grasshopper

In Grasshopper, designers create parametric geometry representing building mass and envelope. Parameters such as building width, height, glazing ratio, and façade orientation are defined so designers can quickly adjust and visualize impacts on energy demand. Grasshopper supports scripting logic to control geometry, enabling automated sweeps through design options.

Also get insights on How to Use Grasshopper + Ladybug Tools for Building Performance Optimization

Quick Climate & Site Analysis with Ladybug

Using Ladybug for Rhino and Grasshopper, designers can pull climate data (e.g., typical meteorological year file for U.S. climates) and run solar access, wind rose, and daylighting simulations directly on conceptual mass. Ladybug visualizes hourly solar radiation and temperature data, helping guide façade orientation, shading strategies, and glazing design based on local climate context. Resources such as a Ladybug Honeybee tutorial further support beginners in mastering these workflows.

Making Better Early Decisions – How Façade Orientation, Massing, and Glazing Ratios Affect Energy Demand

Early decisions on façade orientation, building mass shape, and glazing ratio dramatically influence heating and cooling loads. South-facing glazing improves daylight but may increase cooling; north-facing glazing reduces heat gain but limits daylight. By modeling various orientations and glazing percentages in Grasshopper with Ladybug, designers can balance daylight, solar gain, and heating/cooling demand early in the process.

How to Build Detailed Energy Simulations?

Detailed energy simulations take the conceptual model to the next level by adding construction assemblies, HVAC systems, occupancy schedules, and thermal properties. Tools such as EnergyPlus, OpenStudio, or Honeybee (Grasshopper plugin) enable simulation of hourly energy use, thermal comfort, daylighting, and HVAC behavior.

Steps include:

• Refine model geometry and context – Add adjacent buildings, local terrain, and shading.


• Define material layers – Roof, wall, glazing, with accurate U-values and thermal mass.


• Set internal loads and schedules – Occupancy patterns, lighting, and plug loads per code or project specifics.


• Specify HVAC systems – efficient systems, control logic, part-load performance.


• Run simulations – hourly or annual energy use, peak loads, thermal comfort metrics.


• Analyze results – identify high-impact areas: envelope improvements, HVAC upgrades, daylighting, etc.

This approach ties early parametric concepts to refined performance outcomes using building energy modeling software, while also answering the critical question of what is building energy modeling in practice.

How to Achieve Peak Energy Efficiency Through Parametric Optimization?

Parametric optimization uses algorithms to explore large sets of design options and identify top-performing solutions.

Workflow:

1. Define parameter ranges, e.g., glazing ratio 20–60%, orientation ±30°, insulation thickness variable.


2. Select the objective function to minimize annual energy use, peak load, or combined metric.


3. Run optimization loop to generate design variants, simulate performance, and evaluate results.


4. Select optimal design(s) that meet performance, cost, and aesthetic criteria.



This process produces data-driven guidance for façade design, envelope specification, and energy systems, ensuring the building achieves peak energy efficiency.

Essential Tools & Workflows You Need To Know

Parametric energy modeling requires a combination of geometry tools, simulation plugins, and optimization frameworks. A consistent computational design workflow bridges tools and keeps data flowing efficiently.

Essential Tools for Energy Modeling

• Grasshopper (Rhino) for parametric geometry ­design.


• Ladybug + Honeybee plugins, often regarded as the best Grasshopper plugin to connect Grasshopper with weather data and EnergyPlus-based simulations.


• EnergyPlus, a robust building energy simulation engine.


• OpenStudio as a user-friendly interface to EnergyPlus and HVAC systems.


• Optimization plugins like Galapagos, Octopus for Grasshopper, or Python libraries for algorithmic control.

These tools support building energy modeling software workflows and enable integration between conceptual design and in-depth performance analysis.

Workflow

This computational design workflow integrates environmental analysis and performance-based optimization directly into the early design process.

• Conceptual geometry created in Grasshopper with parametric controls.


• Climate data and solar analysis via Ladybug.


• Performance metrics computed through Honeybee/EnergyPlus.


• Optimization loop applied using Galapagos or Octopus, varying design parameters.


• Result evaluation – compare energy use, comfort, and daylight metrics.


• Detail refinement – transfer optimal parametric design to a detailed BIM or CAD model.

This structured computational design workflow ensures design decisions remain grounded in performance-based insight.

Also Read - 10 Advanced Grasshopper Plugins Every Building Sustainability Analyst Should Know

Mastering Parametric Modeling With Novatr

Bringing parametric energy modeling into your skill set becomes more achievable through the right training. Novatr’s Mastering Computational Design (MCD) course teaches how to integrate design, simulation, and optimization in a cohesive process.

Why Computational Design Is a Game-Changer for Energy Modelers

Computational design enables rapid iterat ion, data-driven decision-making, and consistent performance feedback. It transforms static energy analysis into dynamic, intelligent workflows. This approach increases design agility and elevates performance-based design practices across disciplines.

What You’ll Learn in Novatr’s MCD Course

The curriculum covers:

• Parametric geometry creation and manipulation in Grasshopper.


• Climate-based environmental analysis with Ladybug/Honeybee.


• Energy simulation using EnergyPlus and OpenStudio.


• Setting up optimization routines with plugins like Octopus.


• Linking early concept modeling to detailed energy results.


• Applying computational design methods to real-world projects (e.g., facade optimization, massing studies).

Career Impact for Building Performance Engineers

Building performance engineers trained in parametric energy modeling and computational design workflow can deliver more efficient, high-performing buildings. These skills make them assets in design teams, consultancies, and sustainability roles. Projects benefit from reduced energy consumption, better comfort, and improved design quality.

This career path aligns with the increasing industry demand for professionals skilled in performance-based design, parametric workflows, and energy optimization.
