What is 3D BIM?

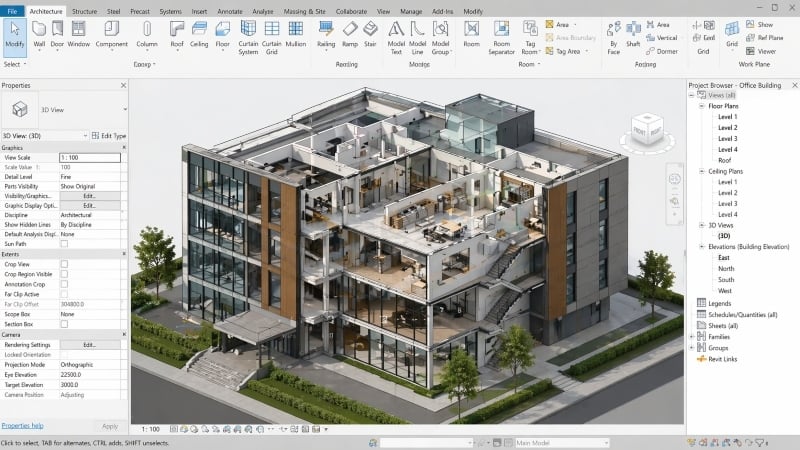

3D BIM represents the digital modeling of a building’s physical and functional characteristics. It is the foundation of all BIM workflows and focuses on creating accurate visual models of structures.
Through BIM modelling, teams can develop detailed representations of architectural, structural, and MEP components. These models include geometry, materials, and spatial relationships, allowing stakeholders to visualize the project before construction begins.
3D BIM supports coordination by enabling clash detection between systems. For example, it helps identify conflicts between structural elements and mechanical systems early in the design phase.
Understanding this level is essential within the BIM dimensions explained, as it forms the base upon which additional dimensions such as time and cost are added.
What is 4D BIM?

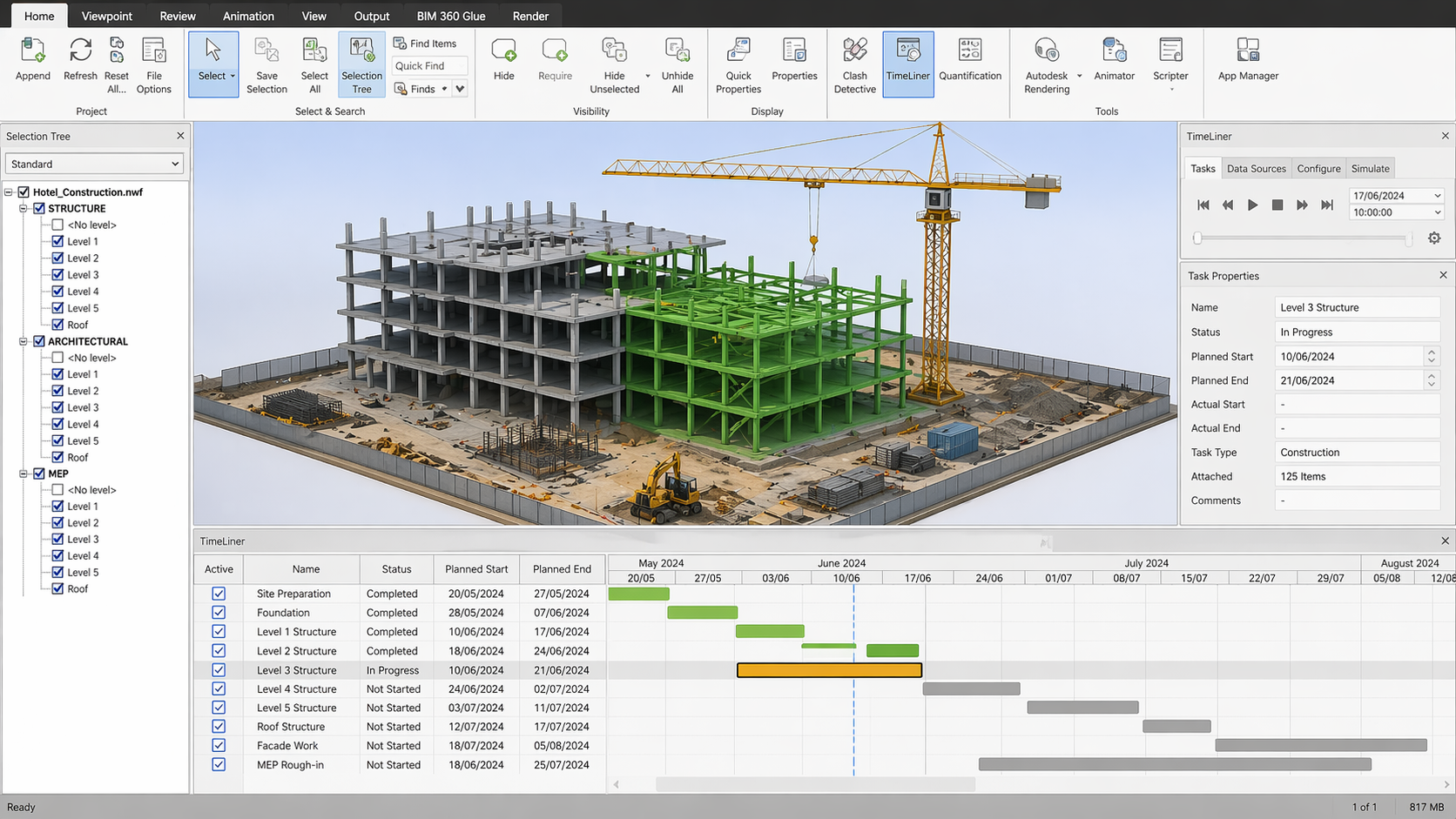

4D BIM adds the dimension of time to 3D models, enabling construction sequencing and scheduling. It links each model element to a specific activity in the project timeline.
With BIM sequencing, teams can simulate how construction progresses over time. This allows them to visualize workflows, identify dependencies, and optimize schedules before execution begins.
One of the key advantages of BIM planning with 4D BIM is improved coordination. Teams can see how different activities interact and adjust sequences to avoid conflicts.
This dimension is an important part of the BIM levels explained, as it transforms static models into dynamic simulations that support better planning and execution.
Also Read: How to Become a 4D BIM Engineer: Skills, Salary, and Career Path
What is 5D BIM?

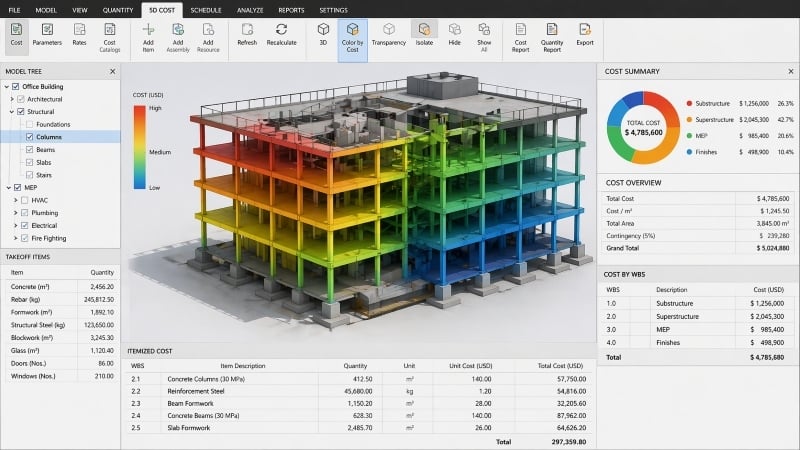

5D BIM integrates cost data with 3D models and schedules, enabling accurate cost estimation and financial planning. It connects quantities, materials, and timelines to project budgets.
Through 5D BIM, teams can track costs in real time as the project evolves. This helps in identifying cost overruns early and making informed decisions.
The 4d vs 5d BIM difference lies in the addition of cost data. While 4D focuses on time and sequencing, 5D extends this by incorporating financial aspects into the model.
This level enhances decision-making by providing a comprehensive view of both time and cost, making it essential for modern construction management.

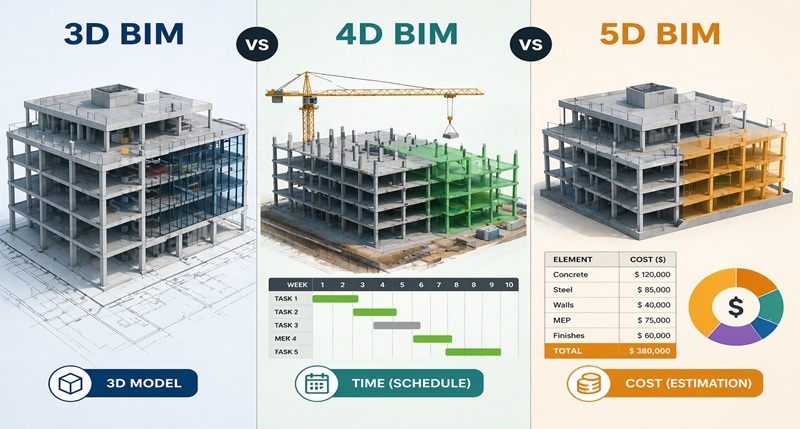

Key Differences Between 3D, 4D, and 5D BIM
Understanding the differences between these dimensions is important for selecting the right approach for a project.
The key distinctions include:
- 3D BIM – Focuses on design and visualization through digital models, helping teams understand spatial relationships and design intent.
- 4D BIM – Adds time, enabling scheduling and sequencing of construction activities, improving workflow planning and coordination.
- 5D BIM – Incorporates cost, allowing budget tracking and financial planning, ensuring better control over project expenses.
These differences show how 3D vs 4D vs 5D BIM evolves from visualization to complete project management.
Each dimension builds on the previous one, creating a more comprehensive system for managing construction projects. This layered approach ensures better integration of design, time, and cost data.
Applications of Each BIM Level in Projects
BIM dimensions are applied differently depending on project requirements. Understanding their applications helps teams use them effectively in real-world scenarios.
1. 3D BIM
3D BIM is widely used for design development and coordination. It allows architects and engineers to create detailed models and identify clashes before construction begins.
In BIM applications in construction, 3D BIM supports design validation, visualization, and communication with stakeholders. It helps teams ensure that the design meets project requirements and aligns with client expectations.
Additionally, 3D BIM improves collaboration by providing a shared model that all disciplines can access and update.
2. 4D BIM
4D BIM is used for scheduling and sequencing construction activities. It enables teams to simulate construction workflows and optimize timelines.
Through 4D simulation construction, teams can visualize how the project will be built over time. This helps in identifying potential delays and improving coordination between different phases of construction.
In industry applications, 4D BIM is used for site planning, resource allocation, and progress tracking. It plays a key role in improving efficiency and reducing risks, especially in complex projects with multiple dependencies.
3. 5D BIM
5D BIM is applied in cost estimation and financial management. It allows teams to link quantities and schedules with cost data.
In BIM applications in construction, 5D BIM supports budget planning, cost tracking, and financial forecasting. It enables stakeholders to make informed decisions based on accurate and up-to-date information.
For example, changes in design can automatically update cost estimates, ensuring that budgets remain aligned with project requirements. This reduces financial uncertainty and improves project control.
